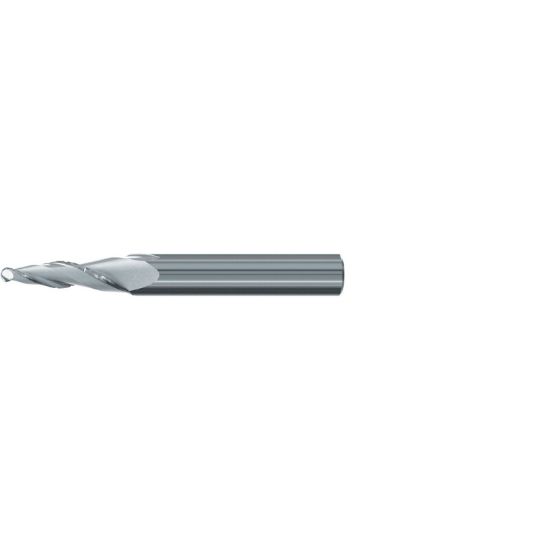

EMUGE 3446.04020B DIA 4MM SH 0.3150 LOC 0.7874 OAL 2.8346 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3446.04020B
Delivery date: 3-5 days
$145.24

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling, Taper Side Milling, Ball Milling
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Cutter Style Ball Taper Flute Finisher
Dimension Description 0.157 x 0.315 x 0.787 x 2.835
Helix Angle 30°
Overall Len 2.8346 72.00MM
End Of Tool Shape Ball Nose
Taper Flute Yes
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Inch/Metric Metric
Single/Double End Single End
Flutes/Inserts 2
Length Type Standard
Taper Angle 6.0°
Cutter Dia 0.1574 4.00MM
Machine Side Connection Size 0.3150 8.00MM
Length Of Cut 0.7874 20.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
