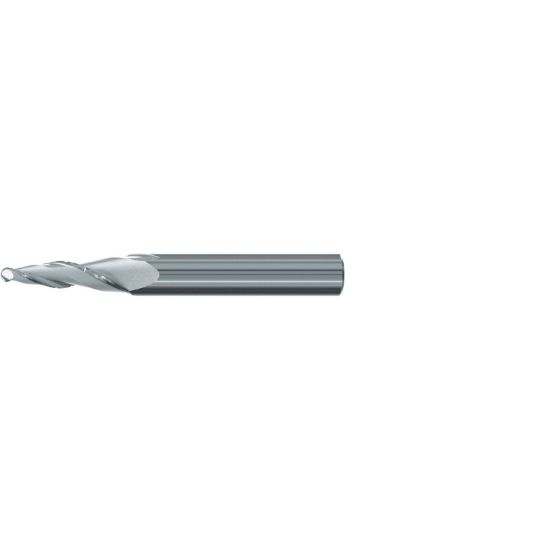

EMUGE 3446.03015A DIA 3MM SH 0.2362 LOC 0.7874 OAL 2.4409 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3446.03015A
Delivery date: 3-5 days
$114.25

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Ball Milling, Profile Milling, Taper Side Milling, Copy Milling
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Dimension Description 0.118 x 0.236 x 0.787 x 2.441
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Flutes/Inserts 2
Inch/Metric Metric
End Of Tool Shape Ball Nose
Taper Angle 3.0°
Taper Flute Yes
Machine Side Connection Size 0.2362 6.00MM
Helix Angle 30°
Single/Double End Single End
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 2.4409 62.00MM
Cutter Dia 0.1181 3.00MM
Tool Material Carbide
Length Of Cut 0.7874 20.00MM
Cutter Style Ball Taper Flute Finisher
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
