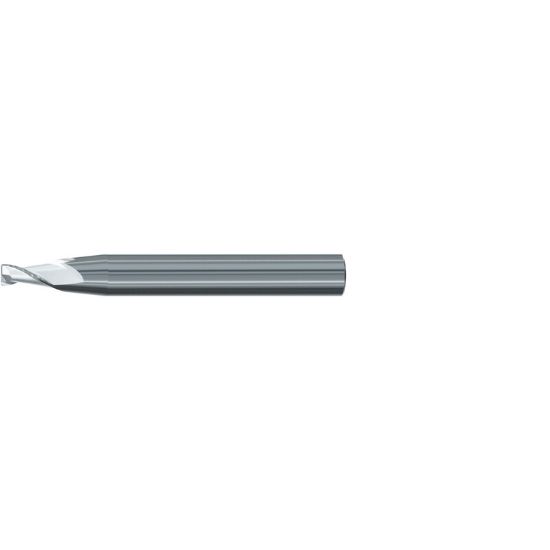

EMUGE 3445.03004A DIA 4MM SH 0.3150 LOC 0.3150 OAL 2.4803 End Mill Taper Flute Carbide Uncoated Single End Corner Radius 0.0157 0.40MM Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3445.03004A
Delivery date: 3-5 days
$71.03

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Profile Milling, Taper Side Milling
Package Size 1
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Dimensional Specifications
Corner Radius 0.0157 0.40MM
End Of Tool Shape Corner Radius
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4803 63.00MM
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Flutes/Inserts 2
Inch/Metric Metric
Length Of Cut 0.3150 8.00MM
Length Type Standard
Cutter Dia 0.1574 4.00MM
Taper Angle 3.0°
Dimension Description 0.157 x 0.315 x 0.315 x 2.480
Taper Flute Yes
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Cutter Style Bull Taper Flute Finisher
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
