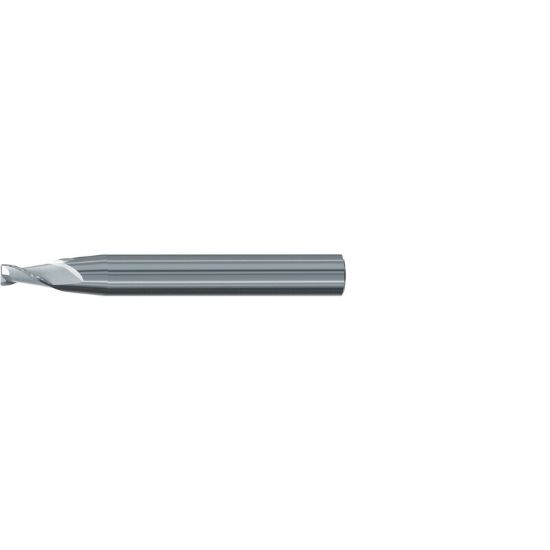

EMUGE 3444.04003A DIA 3MM SH 0.3150 LOC 0.2362 OAL 2.4803 End Mill Taper Flute Carbide Uncoated Single End Corner Radius 0.0118 0.30MM Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3444.04003A
Delivery date: 3-5 days
$59.38

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Profile Milling, Taper Side Milling
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.118 x 0.315 x 0.236 x 2.480
Taper Flute Yes
Taper Angle 4.0°
Corner Radius 0.0118 0.30MM
Shank/Pilot Dia 0.3150 8.00MM
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Overall Len 2.4803 63.00MM
Length Of Cut 0.2362 6.00MM
Flutes/Inserts 2
Length Type Standard
Inch/Metric Metric
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Single/Double End Single End
End Of Tool Shape Corner Radius
Cutter Style Bull Taper Flute Finisher
Cutter Dia 0.1181 3.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
Medical Yes
