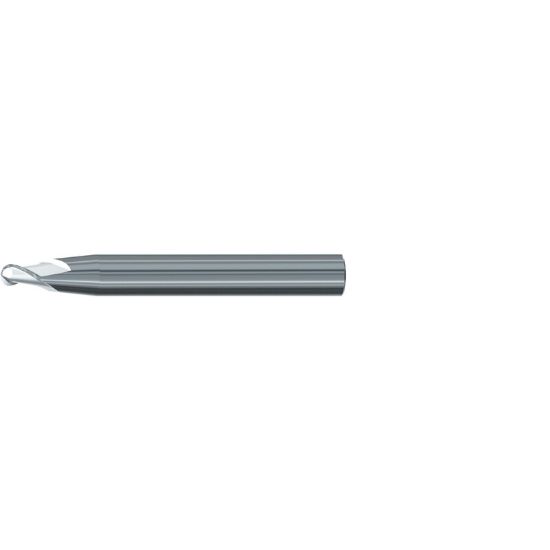

EMUGE 3443.08030A DIA 3MM SH 0.4724 LOC 0.2756 OAL 2.4803 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3443.08030A
Delivery date: 3-5 days
$112.42

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Taper Side Milling, Ball Milling, Profile Milling, Copy Milling
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cutter Dia 0.1181 3.00MM
Shank/Pilot Dia 0.4724 12.00MM
Helix Angle 30°
Length Of Cut 0.2756 7.00MM
Length Type Standard
End Of Tool Shape Ball Nose
Taper Flute Yes
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Inch/Metric Metric
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Single/Double End Single End
Taper Angle 8.0°
Dimension Description 0.118 x 0.472 x 0.276 x 2.480
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 2.4803 63.00MM
Cutter Style Ball Taper Flute Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
