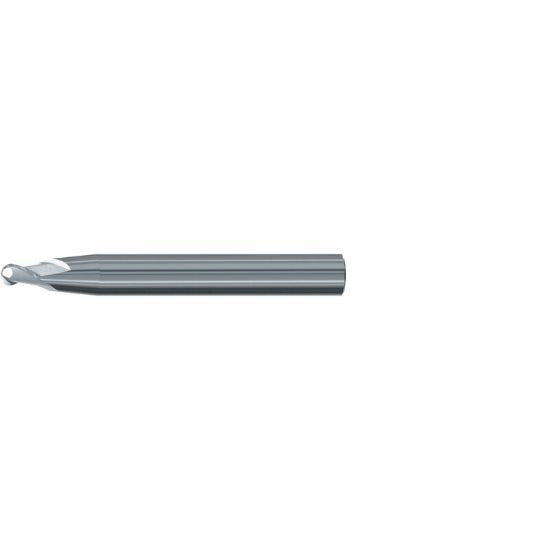

EMUGE 3442.08015A DIA 1.50MM SH 0.3937 LOC 0.1575 OAL 3.149 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3442.08015A
Delivery date: 3-5 days
$89.41

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA No
Application Copy Milling, Taper Side Milling, Profile Milling, Ball Milling
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Description 0.059 x 0.394 x 0.158 x 3.150
Cutter Dia 0.0590 1.50MM
Flutes/Inserts 2
Inch/Metric Metric
Machine Side Connection Size 0.3937 10.00MM
Length Of Cut 0.1575 4.00MM
Length Type Standard
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 3.1496 80.00MM
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Ball Taper Flute Finisher
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Single/Double End Single End
Taper Angle 8.0°
End Of Tool Shape Ball Nose
Taper Flute Yes
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Medical Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
