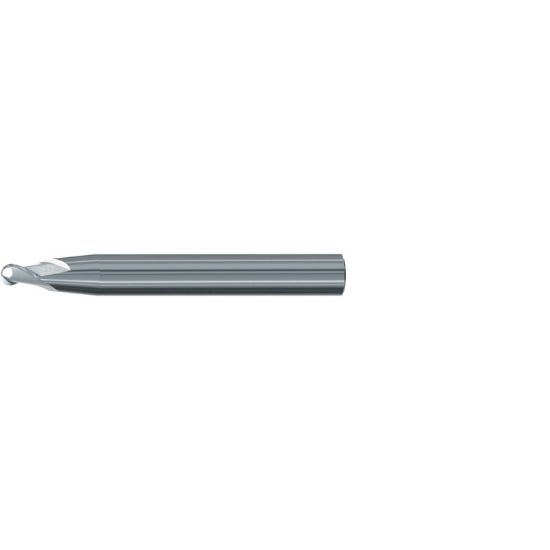

EMUGE 3442.06015A DIA 1.50MM SH 0.3150 LOC 0.1575 OAL 2.480 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3442.06015A
Delivery date: 3-5 days
$75.86

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Ball Milling, Copy Milling, Profile Milling, Taper Side Milling
Performance Rating High Performance
Dimensional Specifications
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Cutter Dia 0.0590 1.50MM
Flutes/Inserts 2
Inch/Metric Metric
Dimension Description 0.059 x 0.315 x 0.158 x 2.480
Length Of Cut 0.1575 4.00MM
Length Type Standard
Taper Angle 6.0°
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4803 63.00MM
End Of Tool Shape Ball Nose
Taper Flute Yes
Machine Side Connection Size 0.3150 8.00MM
Cutter Style Ball Taper Flute Finisher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
