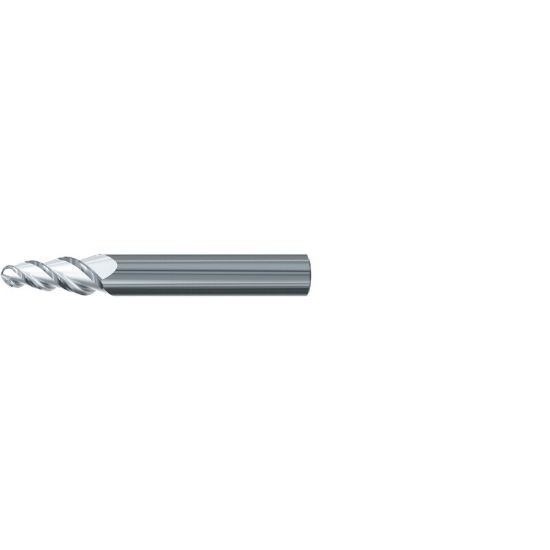

EMUGE 3441.17505A DIA 1MM SH 0.1181 LOC 0.3150 OAL 2.2441 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3441.17505A
Delivery date: 3-5 days
$106.76

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ball Milling, Profile Milling, Taper Side Milling, Copy Milling
Package Size 1
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Cutter Dia 0.0393 1.00MM
Shank/Pilot Dia 0.1181 3.00MM
Length Of Cut 0.3150 8.00MM
Length Type Standard
Dimension Description 0.039 x 0.118 x 0.315 x 2.244
Overall Len 2.2441 57.00MM
Taper Flute Yes
Helix Angle 45°
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Machine Side Connection Size 0.1181 3.00MM
Inch/Metric Metric
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Ball Taper Flute Finisher
Taper Angle 17.5°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
