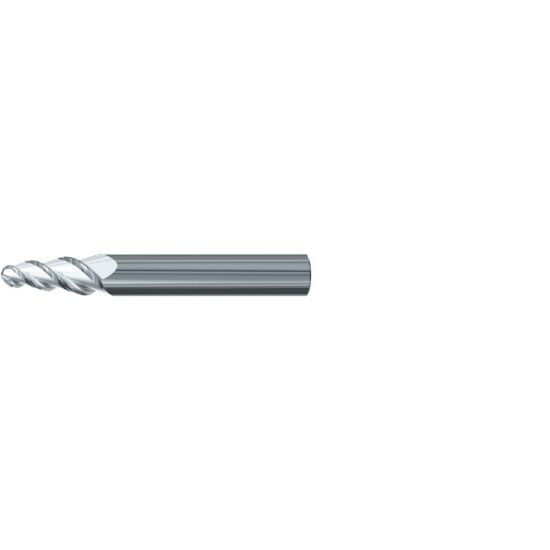

EMUGE 3441.04020B DIA 4MM SH 0.2362 LOC 1.1811 OAL 2.8346 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3441.04020B
Delivery date: 3-5 days
$140.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Ball Milling, Taper Side Milling, Profile Milling, Copy Milling
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cutter Dia 0.1574 4.00MM
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Taper Flute Yes
Taper Angle 4.0°
Helix Angle 45°
Machine Side Connection Size 0.2362 6.00MM
Length Type Standard
Overall Len 2.8346 72.00MM
Dimension Description 0.157 x 0.236 x 1.181 x 2.835
Length Of Cut 1.1811 30.00MM
Inch/Metric Metric
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutter Style Ball Taper Flute Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
