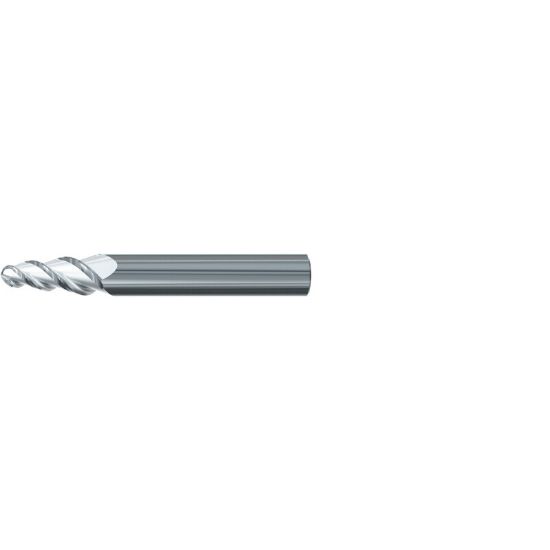

EMUGE 3441.04020A DIA 4MM SH 0.2362 LOC 1.1811 OAL 2.6772 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3441.04020A
Delivery date: 3-5 days
$128.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Taper Side Milling, Ball Milling, Copy Milling
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Overall Len 2.6772 68.00MM
Inch/Metric Metric
Single/Double End Single End
Cutter Dia 0.1574 4.00MM
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Taper Flute Yes
Taper Angle 4.0°
Dimension Description 0.157 x 0.236 x 1.181 x 2.677
Length Of Cut 1.1811 30.00MM
Length Type Standard
Machine Side Connection Size 0.2362 6.00MM
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutter Style Ball Taper Flute Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
