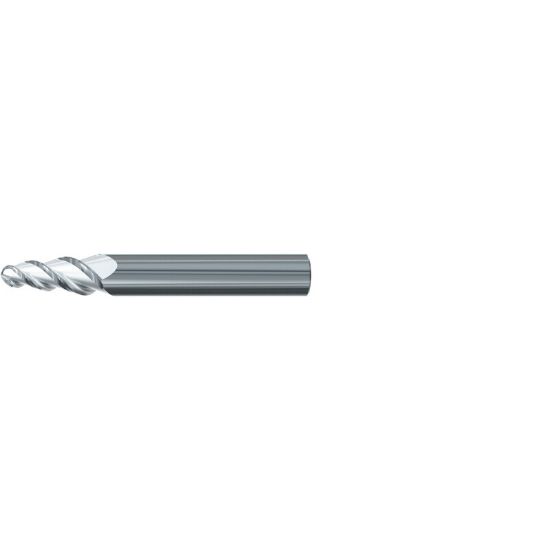

EMUGE 3441.04015A DIA 3MM SH 0.1181 LOC 0.7874 OAL 2.4803 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3441.04015A
Delivery date: 3-5 days
$116.86

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Ball Milling, Profile Milling, Taper Side Milling, Copy Milling
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Machine Side Connection Size 0.1181 3.00MM
Inch/Metric Metric
Single/Double End Single End
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Taper Flute Yes
Taper Angle 4.0°
Dimension Description 0.118 x 0.118 x 0.787 x 2.480
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Overall Len 2.4803 63.00MM
Cutter Style Ball Taper Flute Finisher
Cutter Dia 0.1181 3.00MM
Length Of Cut 0.7874 20.00MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
