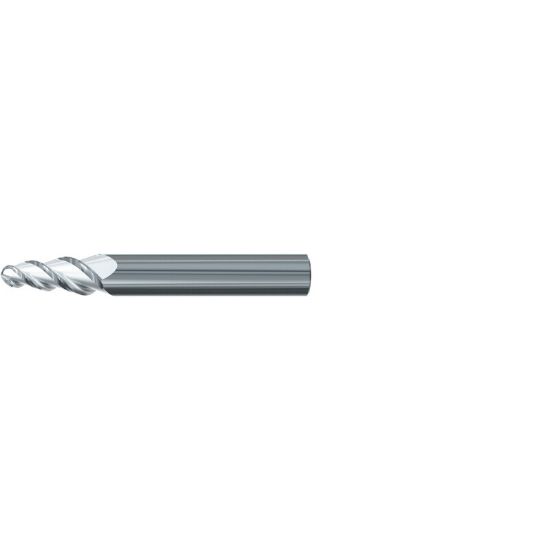

EMUGE 3441.04005A DIA 1MM SH 0.1181 LOC 0.7874 OAL 2.4409 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3441.04005A
Delivery date: 3-5 days
$134.61

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Milling, Profile Milling, Taper Side Milling
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Dimension Description 0.039 x 0.118 x 0.787 x 2.441
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Cutter Style Ball Taper Flute Finisher
Flutes/Inserts 3
Length Of Cut 0.7874 20.00MM
End Of Tool Shape Ball Nose
Taper Flute Yes
Taper Angle 4.0°
Helix Angle 45°
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Machine Side Connection Size 0.1181 3.00MM
Single/Double End Single End
Length Type Standard
Inch/Metric Metric
Cutter Dia 0.0393 1.00MM
Overall Len 2.4409 62.00MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
