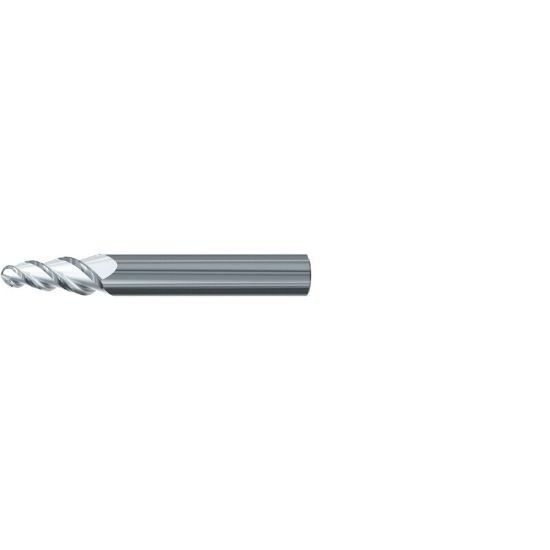

Picture of Emuge 3441.08010B Dia 2mm SH 0.0787 LOC 0.8661 OAL2.4803 End Mill Taper Flute Carbide Uncoated Single End Ball NoseBall Turbine Program

Emuge 3441.08010B Dia 2mm SH 0.0787 LOC 0.8661 OAL2.4803 End Mill Taper Flute Carbide Uncoated Single End Ball NoseBall Turbine Program

Part Number: EMU3441.08010B 0.079 x 0.079 x 0.866 x 2.480
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1237042
Vendor: Sussex Tool and Supply
$167.97

Description

EMUGE End Mill Carbide Uncoated Ball Nose Ball Taper Flute Flutes 3 Single End Turbine Program Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Ball Taper Flute Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Dimensions & Sizing
Overall Length 2.4803 63.00MM
Shank/Pilot Dia 0.0787 2.00MM
Flutes/Inserts 3
Tool Dia 0.0787 2.00MM
Length Of Cut 0.8660 22.00MM
Geometry & Angles
Helix Angle 45
Taper Angle 8.0°
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
