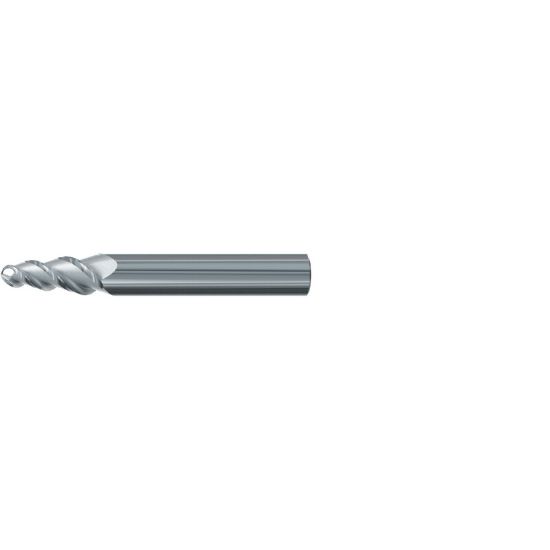

EMUGE 3440.17505A DIA 0.50MM SH 0.2362 LOC 0.3150 OAL 2.244 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3440.17505A
Delivery date: 3-5 days
$98.56

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling, Taper Side Milling, Ball Milling
Performance Rating High Performance
Made In USA No
Package Size 1
Shipping State Massachusetts
Dimensional Specifications
Dimension Description 0.020 x 0.236 x 0.315 x 2.244
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Taper Flute Yes
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Ball Taper Flute Finisher
Taper Angle 17.5°
Shank/Pilot Dia 0.2362 6.00MM
Length Of Cut 0.3150 8.00MM
Length Type Standard
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Cutter Dia 0.0197 0.50MM
Inch/Metric Metric
Single/Double End Single End
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Helix Angle 45°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
