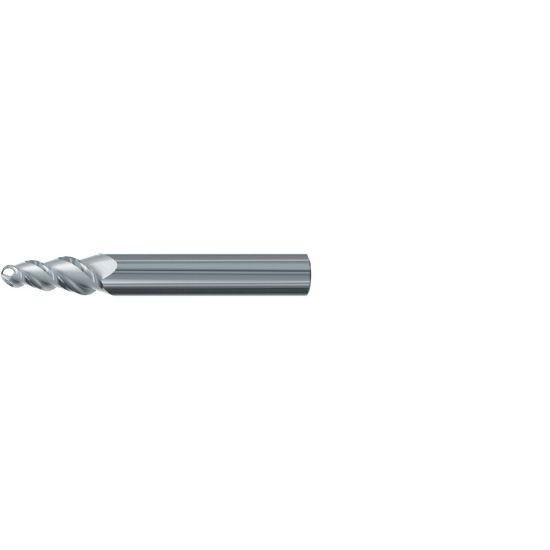

EMUGE 3440.08015B DIA 1.50MM SH 0.3937 LOC 1.0236 OAL 2.834 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3440.08015B
Delivery date: 3-5 days
$136.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Copy Milling, Ball Milling, Taper Side Milling
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Length Of Cut 1.0236 26.00MM
Single/Double End Single End
Taper Angle 8.0°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Ball Taper Flute Finisher
Dimension Description 0.059 x 0.394 x 1.024 x 2.835
Shank/Pilot Dia 0.3937 10.00MM
Machine Side Connection Size 0.3937 10.00MM
Cutter Dia 0.0590 1.50MM
Length Type Standard
Inch/Metric Metric
End Of Tool Shape Ball Nose
Taper Flute Yes
Helix Angle 45°
Flutes/Inserts 3
Overall Len 2.8346 72.00MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
