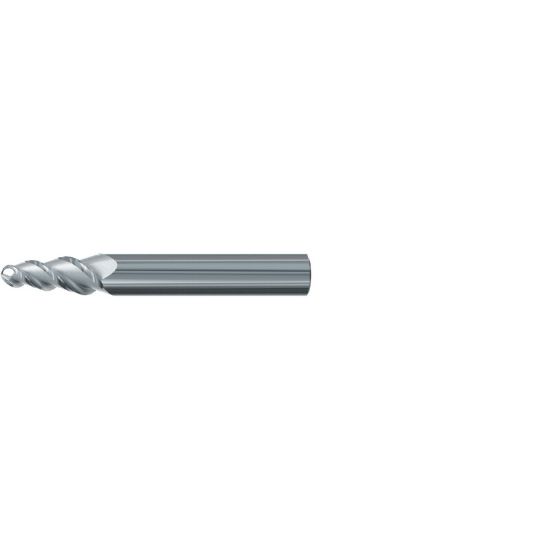

EMUGE 3440.08005A DIA 0.50MM SH 0.2362 LOC 0.7087 OAL 2.440 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3440.08005A
Delivery date: 3-5 days
$111.35

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Taper Side Milling, Ball Milling, Copy Milling, Profile Milling
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Length Type Standard
Inch/Metric Metric
Overall Len 2.4409 62.00MM
End Of Tool Shape Ball Nose
Taper Flute Yes
Helix Angle 45°
Machine Side Connection Size 0.2362 6.00MM
Flutes/Inserts 3
Dimension Description 0.020 x 0.236 x 0.709 x 2.441
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Length Of Cut 0.7087 18.00MM
Cutter Style Ball Taper Flute Finisher
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Cutter Dia 0.0197 0.50MM
Single/Double End Single End
Taper Angle 8.0°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
