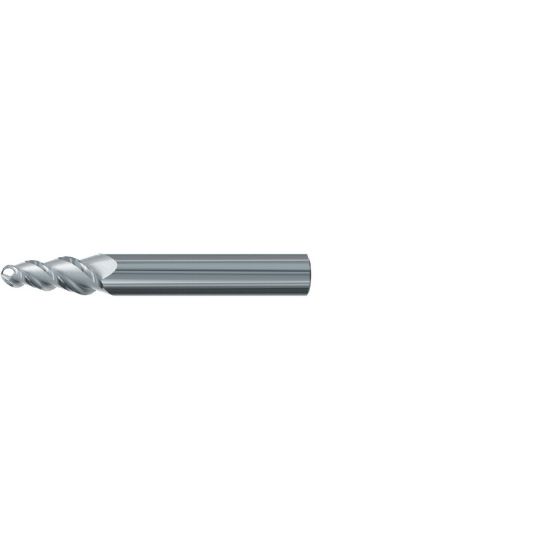

EMUGE 3440.06030B DIA 3MM SH 0.4724 LOC 1.2205 OAL 3.2677 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3440.06030B
Delivery date: 3-5 days
$151.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Profile Milling, Taper Side Milling
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.118 x 0.472 x 1.221 x 3.268
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Taper Flute Yes
Length Of Cut 1.2205 31.00MM
Taper Angle 6.0°
Helix Angle 45°
Machine Side Connection Size 0.4724 12.00MM
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Cutter Style Ball Taper Flute Finisher
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Inch/Metric Metric
Single/Double End Single End
Cutter Dia 0.1181 3.00MM
Overall Len 3.2677 83.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Mold Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Medical Yes
