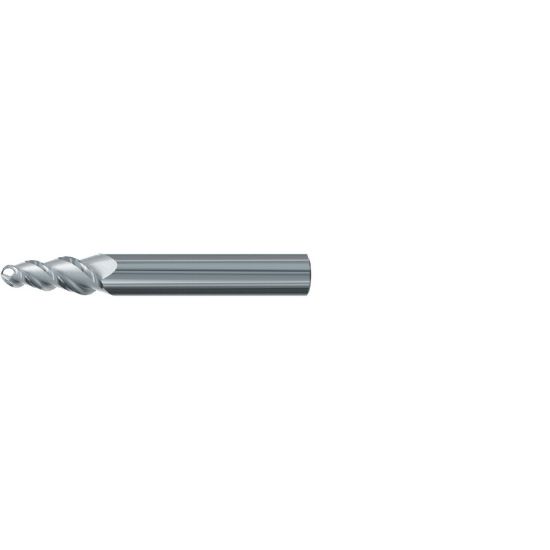

EMUGE 3440.06015B DIA 1.50MM SH 0.3150 LOC 0.9843 OAL 2.677 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3440.06015B
Delivery date: 3-5 days
$124.18

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Ball Milling, Profile Milling, Taper Side Milling, Copy Milling
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Description 0.059 x 0.315 x 0.984 x 2.677
Machine Side Connection Size 0.3150 8.00MM
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Taper Flute Yes
Taper Angle 6.0°
Helix Angle 45°
Length Of Cut 0.9843 25.00MM
Length Type Standard
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Cutter Dia 0.0590 1.50MM
Overall Len 2.6772 68.00MM
Inch/Metric Metric
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Cutter Style Ball Taper Flute Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Medical Yes
Agricultural YES
Energy Yes
