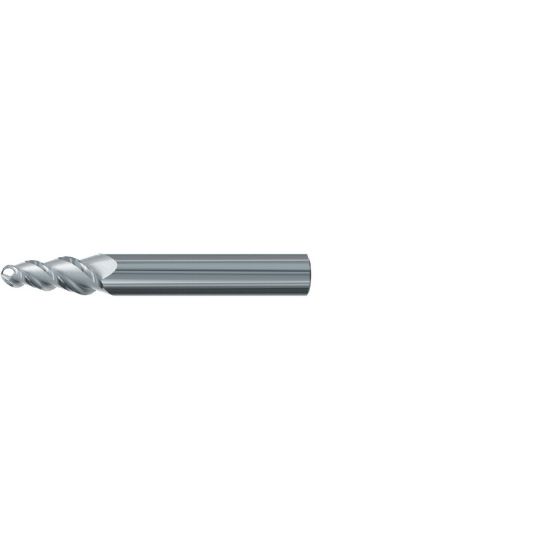

EMUGE 3440.04030A DIA 3MM SH 0.3937 LOC 0.9843 OAL 2.8346 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3440.04030A
Delivery date: 3-5 days
$131.57

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Copy Milling, Profile Milling, Taper Side Milling, Ball Milling
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Length Type Standard
Cutter Dia 0.1181 3.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Ball Taper Flute Finisher
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Dimension Description 0.118 x 0.394 x 0.984 x 2.835
Overall Len 2.8346 72.00MM
Single/Double End Single End
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Inch/Metric Metric
Shank/Pilot Dia 0.3937 10.00MM
Length Of Cut 0.9843 25.00MM
Machine Side Connection Size 0.3937 10.00MM
Taper Flute Yes
Taper Angle 4.0°
Helix Angle 45°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
