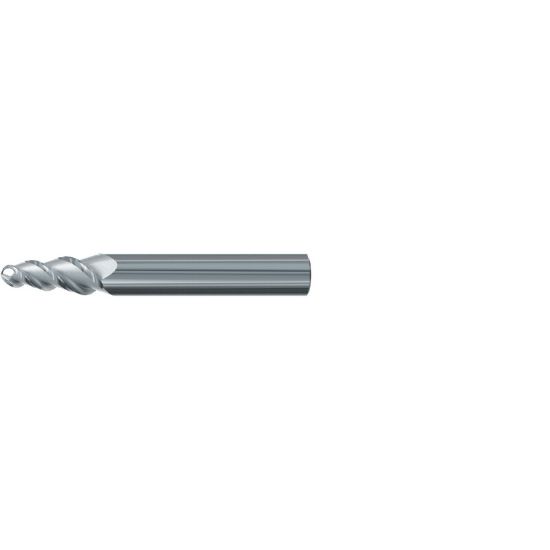

EMUGE 3440.03020B DIA 2MM SH 0.3150 LOC 1.2205 OAL 3.1496 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3440.03020B
Delivery date: 3-5 days
$136.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ball Milling, Profile Milling, Taper Side Milling, Copy Milling
Package Size 1
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Taper Angle 3.0°
Taper Flute Yes
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 3.1496 80.00MM
Length Type Standard
Length Of Cut 1.2205 31.00MM
Helix Angle 45°
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Inch/Metric Metric
Cutter Dia 0.0787 2.00MM
Single/Double End Single End
Dimension Description 0.079 x 0.315 x 1.221 x 3.150
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Cutter Style Ball Taper Flute Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
