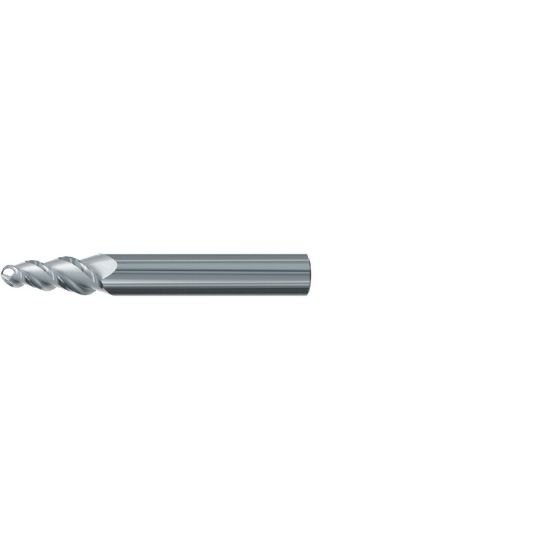

Picture of Emuge 3440.17505A Dia 0.50mm SH 0.2362 LOC 0.3150 OAL2.244 End Mill Taper Flute Carbide Uncoated Single End Ball NoseBall Turbine Program

Emuge 3440.17505A Dia 0.50mm SH 0.2362 LOC 0.3150 OAL2.244 End Mill Taper Flute Carbide Uncoated Single End Ball NoseBall Turbine Program

Part Number: EMU3440.17505A 0.020 x 0.236 x 0.315 x 2.244

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1236912
Vendor: Sussex Tool and Supply
$102.23
EMUGE End Mill Carbide Uncoated Ball Nose Ball Taper Flute Flutes 3 Single End Turbine Program Carbide
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.2441 57.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Tool Dia 0.0197 0.50MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3150 8.00MM
End Of Tool Shape Ball Nose
Cutter Style Ball Taper Flute Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 45
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Taper Angle 17.5°
