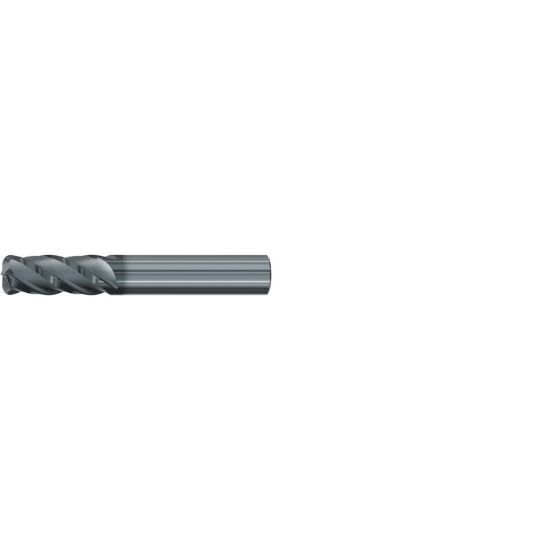

Picture of Emuge 2998L.062030 Dia 5/8 SH 0.6250 LOC 1.2500 OAL 3.50 End Mill Variable Helix Carbide AlCrN Single End Corner Radius0.0300 0.76mm Top-Cut VAR

Emuge 2998L.062030 Dia 5/8 SH 0.6250 LOC 1.2500 OAL 3.50 End Mill Variable Helix Carbide AlCrN Single End Corner Radius0.0300 0.76mm Top-Cut VAR

Part Number: EMU2998L.062030 0.625 x 0.625 x 1.250 x 3.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$165.67
SKU: 1236824

Description

EMUGE Variable Helix End Mill Carbide AlCrN Corner Radius 0.0300 0.76MM 4 Flute Single End Top-Cut VAR
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.2500 31.75MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
