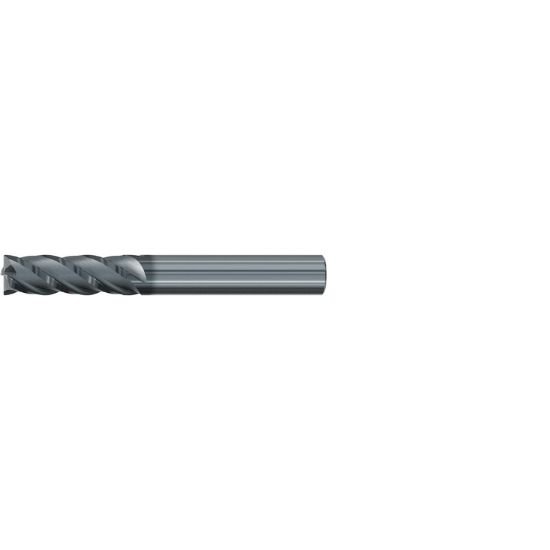

Picture of Emuge 2996L.03125 Dia 5/16 SH 0.3125 LOC 1.1250 OAL 3.00 End Mill Variable Helix Carbide AlCrN Single End Square Sharp Top-Cut VAR

Emuge 2996L.03125 Dia 5/16 SH 0.3125 LOC 1.1250 OAL 3.00 End Mill Variable Helix Carbide AlCrN Single End Square Sharp Top-Cut VAR

Part Number: EMU2996L.03125 0.313 x 0.313 x 1.125 x 3.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$56.09
SKU: 1236861

Description

EMUGE Variable Helix End Mill Carbide AlCrN Square Sharp 4 Flute Single End Top-Cut VAR
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 4
Tool Dia 0.3125 7.94MM - 5/16
Length Of Cut 1.1250 28.58MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
