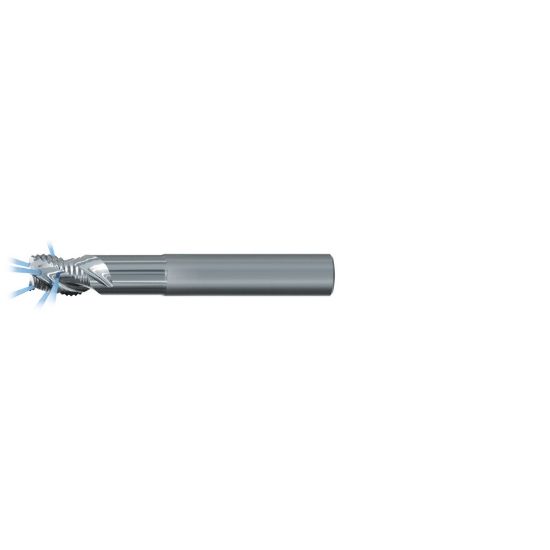

EMUGE 2890 Z.012040 DIA 12MM SH 0.4724 LOC 0.5906 OAL 3.2677 End Mill Standard Flute/With Coolant Variable Helix Carbide Uncoated Single End Corner Radius 0.1575 4.00MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2890 Z.012040
Delivery date: 3-5 days
$272.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Side Milling, Slot Milling
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Neck Length 1.3780 35.00MM
Inch/Metric Metric
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Length Type Standard / With Neck
Machine Side Connection Size 0.4724 12.00MM
Cutter Style Carbide Bull Nose Coolant
Dimension Description 0.472 x 0.472 x 0.591 x 3.268
Corner Radius 0.1575 4.00MM
Flutes/Inserts 3
Length Of Cut 0.5906 15.00MM
Cutter Dia 0.4724 12.00MM
Overall Len 3.2677 83.00MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Aerospace Yes
Medical Yes
