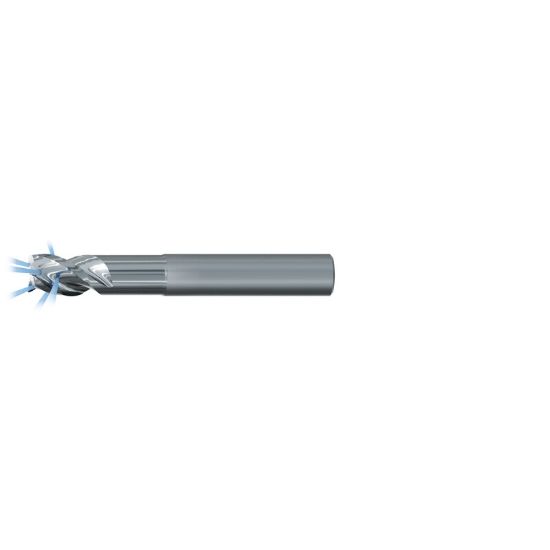

EMUGE 2889 Z.0375 DIA 3/8 SH 0.3750 LOC 0.4375 OAL 2.7500 End Mill Standard Flute Coolant Variable Helix Carbide Uncoated Single End Square Sharp Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2889 Z.0375
Delivery date: 3-5 days
$158.74

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Slot Milling, Side Milling
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Length Type Standard
Dimension Description 0.375 x 0.375 x 0.438 x 2.750
Cutter Dia 0.3750 9.53MM - 3/8
Overall Len 2.7500 69.85MM
Cutter Style Carbide Finisher Coolant
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.4375 11.11MM
End Of Tool Shape Square
Inch/Metric Inch
Machine Side Connection Type Cylindrical
Helix Angle 40°
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Center Cutting No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
