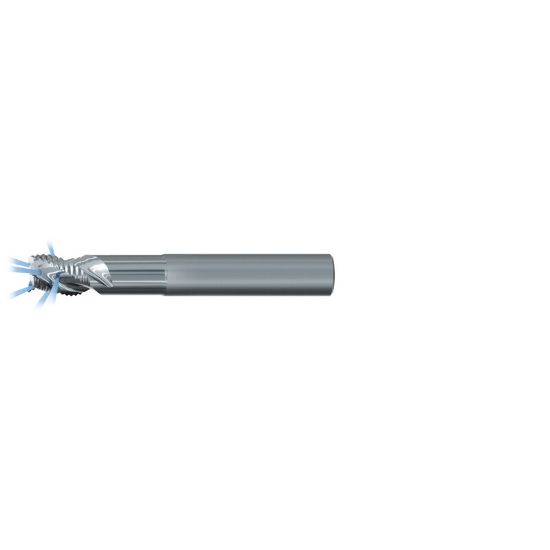

EMUGE 2888 Z.0750 DIA 3/4 SH 0.7500 LOC 0.9038 OAL 4.2500 End Mill Carbide Uncoated Single End Square Sharp Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2888 Z.0750
Delivery date: 3-5 days
$427.06

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Performance Rating High Performance
Application Face Milling, Slot Milling, Side Milling
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Cutter Style Carbide Rougher Coolant
Single/Double End Single End
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 4.2500 107.95MM
Helix Angle 40°
Length Of Cut 0.9038 22.96MM
Dimension Description 0.750 x 0.750 x 0.904 x 4.250
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Center Cutting No
Industry-Specific Applications
Job Shop Yes
