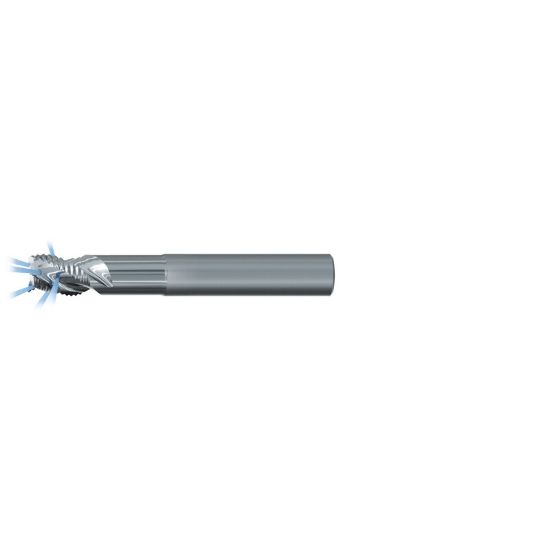

EMUGE 2888 Z.020 DIA 20MM SH 0.7874 LOC 0.9843 OAL 4.3307 End Mill Carbide Uncoated Single End Square Sharp Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2888 Z.020
Delivery date: 3-5 days
$477.47

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7874 20.00MM
Cutter Style Carbide Rougher Coolant
Machine Side Connection Size 0.7874 20.00MM
Length Of Cut 0.9843 25.00MM
Dimension Description 0.787 x 0.787 x 0.984 x 4.331
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.7874 20.00MM
Overall Len 4.3307 110.00MM
Helix Angle 40°
Inch/Metric Metric
Length Type Standard
Flutes/Inserts 3
End Of Tool Shape Square
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting No
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
