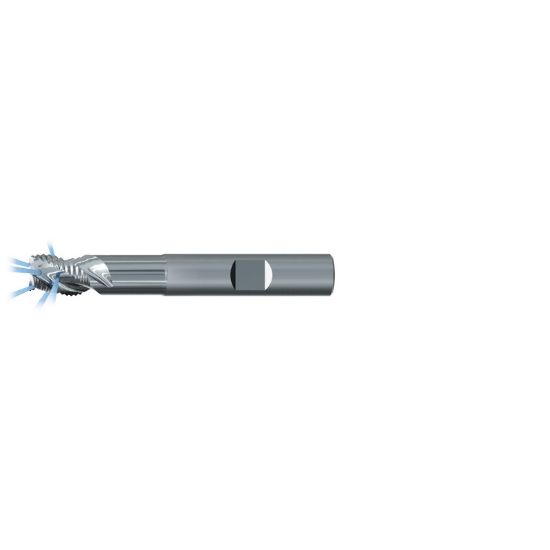

EMUGE 2883 Z.016025 DIA 16MM SH 0.6299 LOC 0.7874 OAL 3.7795 End Mill Standard Flute/With Coolant Variable Helix Carbide Uncoated Single End Corner Radius 0.0984 2.50MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2883 Z.016025
Delivery date: 3-5 days
$363.46

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Face Milling, Slot Milling, Side Milling
Shipping State Massachusetts
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Corner Radius 0.0984 2.50MM
Cutter Style Carbide Bull Nose Coolant
Inch/Metric Metric
Neck Length 1.8110 46.00MM
Machine Side Connection Size 0.6299 16.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Dimension Description 0.630 x 0.630 x 0.787 x 3.780
Cutter Dia 0.6299 16.00MM
Overall Len 3.7795 96.00MM
Flutes/Inserts 3
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Length Of Cut 0.7874 20.00MM
Length Type Standard / With Neck
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting No
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
