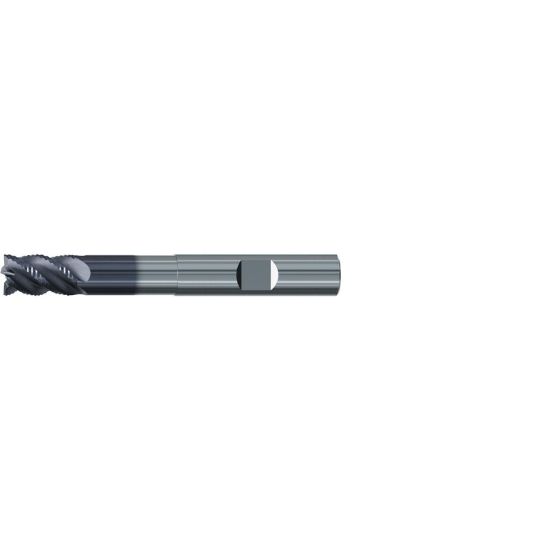

EMUGE 2875A.010 DIA 10MM SH 0.3937 LOC 0.5906 OAL 3.1496 End Mill Carbide TiAlN Single End Square Sharp Multi-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2875A.010
Delivery date: 3-5 days
$221.18

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Side Milling, Face Milling
Coating TiAlN
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Dimension Description 0.394 x 0.394 x 0.591 x 3.150
Length Type Extra Long
Flutes/Inserts 3
Length Of Cut 0.5906 15.00MM
Cutter Style Carbide Rougher/Finisher
Machine Side Connection Size 0.3937 10.00MM
Helix Angle 45°
End Of Tool Shape Square
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 3.1496 80.00MM
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
