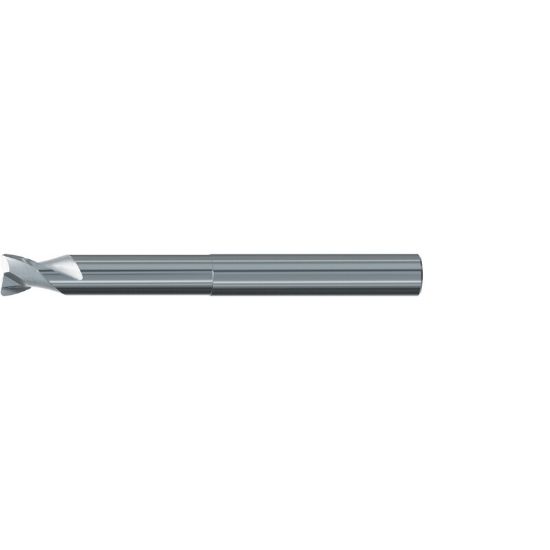

EMUGE 2838.01 DIA 10MM SH 0.3937 LOC 0.3150 OAL 3.9370 End Mill Torus Standard Helix Carbide Uncoated Single End Corner Radius 0.0394 1.00MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2838.010
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Side Milling
Performance Rating High Performance
Shipping State Massachusetts
Dimensional Specifications
Machine Side Connection Size 0.3937 10.00MM
Overall Len 3.9370 100.00MM
Length Of Cut 0.3150 8.00MM
Cutter Style Carbide Torus
Flutes/Inserts 2
Length Type Long
Inch/Metric Metric
Corner Radius 0.0394 1.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.3937 10.00MM
Shank/Pilot Dia 0.3937 10.00MM
Helix Angle 30°
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.394 x 0.394 x 0.315 x 3.937
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
