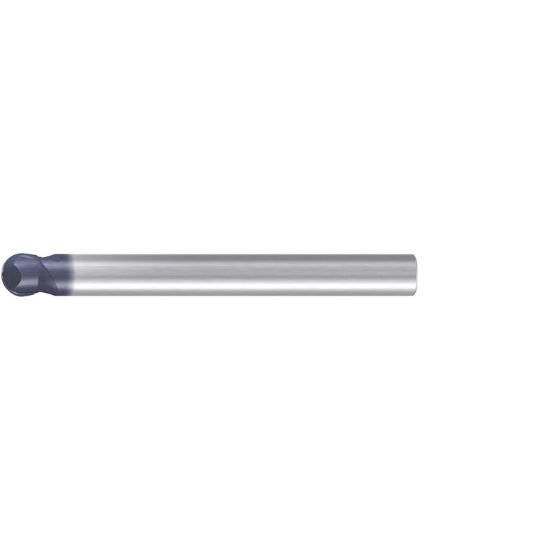

Picture of Emuge 2819A.006 Dia 6mm SH 0.2362 LOC 0.1378 OAL 3.1496 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall Hard-Cut

Emuge 2819A.006 Dia 6mm SH 0.2362 LOC 0.1378 OAL 3.1496 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall Hard-Cut

Part Number: EMU2819A.006 0.236 x 0.236 x 0.138 x 3.150
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$116.71
SKU: 1235344

Description

EMUGE End Mill Carbide TiAlN Ball Nose 2 Flute Single End Hard-Cut
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Extra Long
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.1496 80.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2362 6.00MM
Length Of Cut 0.1378 3.50MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
