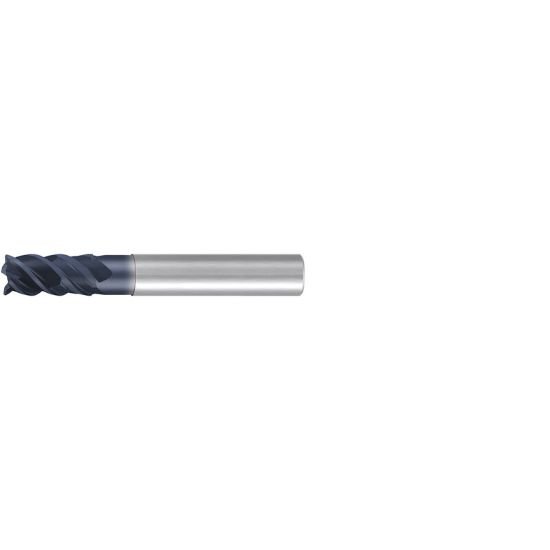

Picture of Emuge 2815A.006 Dia 6mm SH 0.2362 LOC 0.5118 OAL 2.2441 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0197 0.50mm Jet-Cut

Emuge 2815A.006 Dia 6mm SH 0.2362 LOC 0.5118 OAL 2.2441 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0197 0.50mm Jet-Cut

Part Number: EMU2815A.006 0.236 x 0.236 x 0.512 x 2.244
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$153.00
SKU: 1235678

Description

EMUGE High Helix End Mill Carbide TiAlN Corner Radius 0.0197 0.50MM 4 Flute Single End Jet-Cut
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.2441 57.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.2362 6.00MM
Length Of Cut 0.5118 13.00MM
Geometry & Angles
Corner Radius 0.0197 0.50MM
Helix Angle 50
Performance & Capacity
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
