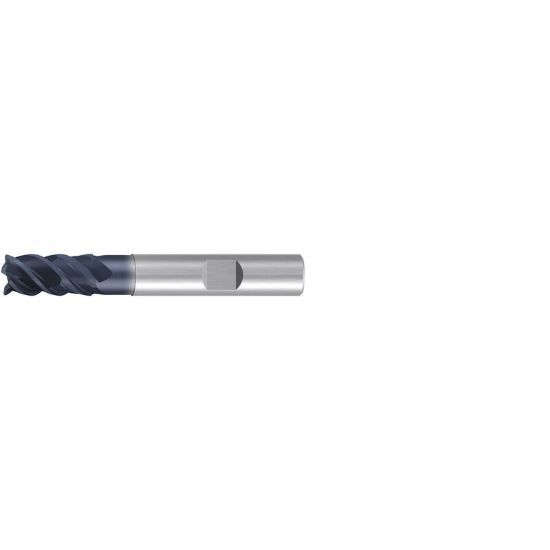

Picture of Emuge 2814A.0250 Dia 1/4 SH 0.2500 LOC 0.3750 OAL 2.00 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0078 0.20mm Jet-Cut

Emuge 2814A.0250 Dia 1/4 SH 0.2500 LOC 0.3750 OAL 2.00 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0078 0.20mm Jet-Cut

Part Number: EMU2814A.0250 0.250 x 0.250 x 0.375 x 2.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$143.11
SKU: 1235668

Description

EMUGE High Helix End Mill Carbide TiAlN Corner Radius 0.0078 0.20MM 4 Flute Single End Jet-Cut
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 4
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.3750 9.53MM
Geometry & Angles
Corner Radius 0.0078 0.20MM
Helix Angle 50
Performance & Capacity
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
