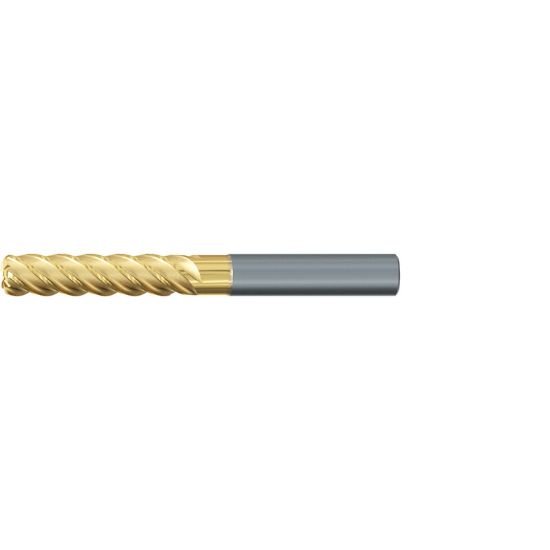

Picture of Emuge 2655T.016040 Dia 16mm SH 0.6299 LOC 2.5197 OAL 5.0394 End Mill Variable Helix Carbide TiN + TiAIn Single End Corner Radius0.1575 4.00mm TiNox-Cut

Emuge 2655T.016040 Dia 16mm SH 0.6299 LOC 2.5197 OAL 5.0394 End Mill Variable Helix Carbide TiN + TiAIn Single End Corner Radius0.1575 4.00mm TiNox-Cut

Part Number: EMU2655T.016040 0.630 x 0.630 x 2.520 x 5.039
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$543.21
SKU: 1236134

Description

EMUGE Variable Helix End Mill Carbide TiN + TiAIN Corner Radius 0.1575 4.00MM 5 Flute Single End TiNox-Cut
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.0394 128.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 5
Tool Dia 0.6299 16.00MM
Length Of Cut 2.5197 64.00MM
Neck Length 2.9528 75.00MM
Geometry & Angles
Corner Radius 0.1575 4.00MM
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Inconel, Titanium
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiN + TiAIN
