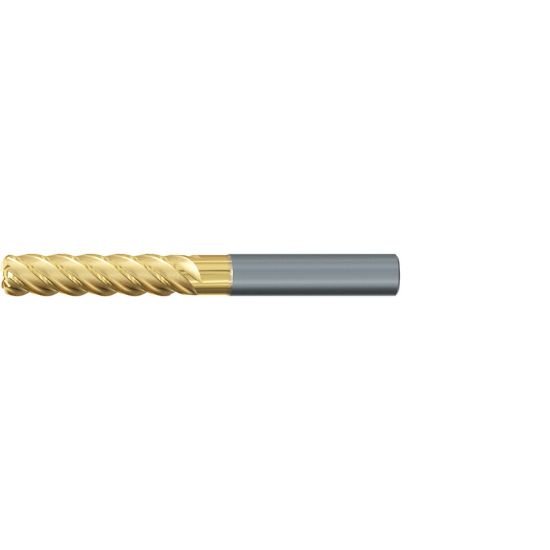

Picture of Emuge 2655T.012040 Dia 12mm SH 0.4724 LOC 1.8898 OAL4.2126 End Mill Standard Flute Variable Helix Carbide TiN + TiAIn Single End Corner Radius0.1575 4.00mm TiNox-Cut

Emuge 2655T.012040 Dia 12mm SH 0.4724 LOC 1.8898 OAL4.2126 End Mill Standard Flute Variable Helix Carbide TiN + TiAIn Single End Corner Radius0.1575 4.00mm TiNox-Cut

Part Number: EMU2655T.012040 0.472 x 0.472 x 1.890 x 4.213

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1236131
Vendor: Sussex Tool and Supply
$213.42
EMUGE Variable Helix End Mill Carbide TiN + TiAIN Corner Radius 0.1575 4.00MM Standard Flute Flutes 5 Single End TiNox-Cut Carbide TiN/TiAlN coated insert exhibited higher cutting temperature than AlTiCrN and AlTiN coated inserts
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, High Temp, Inconel, Titanium
Coating TiN + TiAIN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 4.2126 107.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 5
Tool Dia 0.4724 12.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.8898 48.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.1575 4.00MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 2.3622 60.00MM
