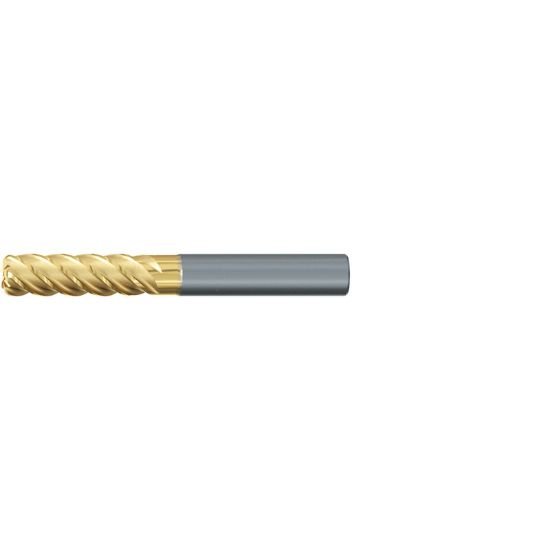

Picture of Emuge 2654T.012025 Dia 12mm SH 0.4724 LOC 1.4173 OAL3.6614 End Mill Standard Flute Variable Helix Carbide TiN + TiAIn Single End Corner Radius0.0984 2.50mm TiNox-Cut

Emuge 2654T.012025 Dia 12mm SH 0.4724 LOC 1.4173 OAL3.6614 End Mill Standard Flute Variable Helix Carbide TiN + TiAIn Single End Corner Radius0.0984 2.50mm TiNox-Cut

Part Number: EMU2654T.012025 0.472 x 0.472 x 1.417 x 3.661
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1236115
Vendor: Sussex Tool and Supply
$243.84

Description

EMUGE Variable Helix End Mill Carbide TiN + TiAIN Corner Radius 0.0984 2.50MM Standard Flute Flutes 5 Single End TiNox-Cut Carbide TiN/TiAlN coated insert exhibited higher cutting temperature than AlTiCrN and AlTiN coated inserts
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.6614 93.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 5
Tool Dia 0.4724 12.00MM
Length Of Cut 1.4173 36.00MM
Geometry & Angles
Corner Radius 0.0984 2.50MM
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Inconel, Titanium
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiN + TiAIN
