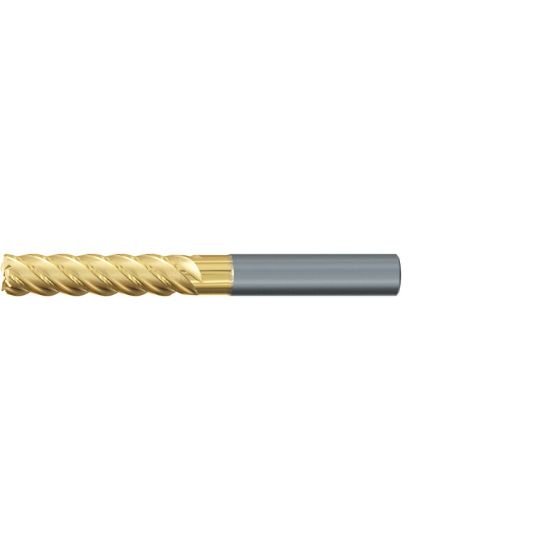

Picture of Emuge 2645T.006 2645T.006 Dia 6mm SH 0.2362 LOC 0.9449 OAL2.6772 End Mill Standard Flute Variable Helix Carbide TiN + TiAIn Single End 45.0° Chamfer TiNox-Cut

Emuge 2645T.006 2645T.006 Dia 6mm SH 0.2362 LOC 0.9449 OAL2.6772 End Mill Standard Flute Variable Helix Carbide TiN + TiAIn Single End 45.0° Chamfer TiNox-Cut

Part Number: EMU2645T.006 0.236 x 0.236 x 0.945 x 2.677
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1236123
Vendor: Sussex Tool and Supply
$110.11

Description

EMUGE Variable Helix End Mill Carbide TiN + TiAIN 45.0° Chamfer Chamfer Standard Flute Flutes 4 Single End TiNox-Cut Carbide TiN/TiAlN coated insert exhibited higher cutting temperature than AlTiCrN and AlTiN coated inserts
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.6772 68.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.2362 6.00MM
Length Of Cut 0.9449 24.00MM
Neck Length 1.1811 30.00MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Inconel, Titanium
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiN + TiAIN
