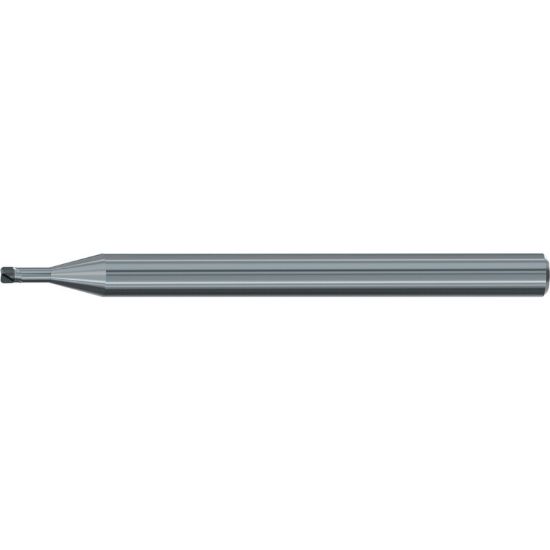

Picture of EMUGE 2639.0501 DIA 0.50MM SH 0.1575 LOC 0.0138 OAL 1.968 End Mill Torus Standard Helix CBN Uncoated Single End Corner Radius 0.0039 0.10MM Micro

EMUGE 2639.0501 DIA 0.50MM SH 0.1575 LOC 0.0138 OAL 1.968 End Mill Torus Standard Helix CBN Uncoated Single End Corner Radius 0.0039 0.10MM Micro

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2639.050100
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Slot Milling, Face Milling, Copy Milling, Side Milling
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.1574 4.00MM
End Of Tool Shape Corner Radius
Cutter Dia 0.0197 0.50MM
Cutter Style CBN Torus
Inch/Metric Metric
Single/Double End Single End
Neck Length 0.0591 1.50MM
Flutes/Inserts 2
Corner Radius 0.0039 0.10MM
Machine Side Connection Type Cylindrical
Overall Len 1.9685 50.00MM
Length Of Cut 0.0138 0.35MM
Machine Side Connection Size 0.1575 4.00MM
Length Type Standard / With Neck
Dimension Description 0.020 x 0.157 x 0.014 x 1.969
Tool Material CBN
Helix Angle 0°
Cut Rating >50HRC Steel
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat CBN
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
