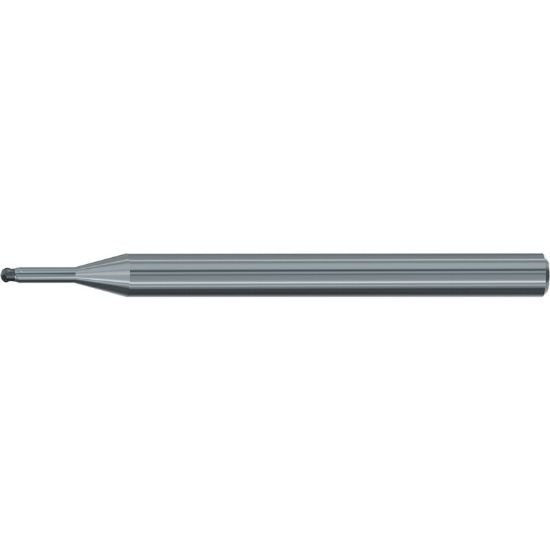

Picture of Emuge 2620.08 Dia 0.80mm SH 0.1575 LOC 0.0236 OAL1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius0.0157 0.40mm Micro

Emuge 2620.08 Dia 0.80mm SH 0.1575 LOC 0.0236 OAL1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius0.0157 0.40mm Micro

Part Number: EMU2620.080 0.032 x 0.157 x 0.024 x 1.969

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1235805
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
EMUGE Standard Helix End Mill CBN Uncoated Corner Radius 0.0157 0.40MM Standard Flute Flutes 2 Single End Micro CBN
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Tool Material CBN
Cutting Edge Mat CBN
Machine Side Connection Type Cylindrical
Cut Rating >50HRC Steel
Mach Side Connection Size 0.1575 4.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0315 0.80MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.0236 0.60MM
End Of Tool Shape CORNER RADIUS
Cutter Style CBN Ball
Single/Double End Single End
Corner Radius 0.0157 0.40MM
Inch/Metric Metric
Helix Angle 0
Center Cutting Center Cutting
Neck Length 0.1417 3.60MM
