  • EMUGE 2619.15 DIA 1.50MM SH 0.1575 LOC 0.0433 OAL 1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0295 0.75MM Micro

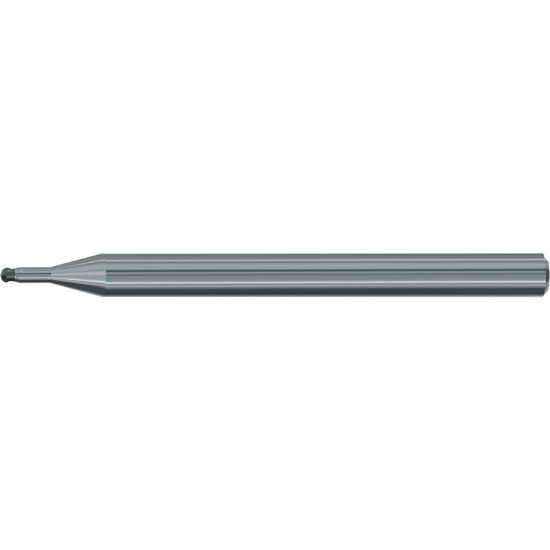

Picture of EMUGE 2619.15 DIA 1.50MM SH 0.1575 LOC 0.0433 OAL 1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0295 0.75MM Micro

EMUGE 2619.15 DIA 1.50MM SH 0.1575 LOC 0.0433 OAL 1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0295 0.75MM Micro

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2619.150
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Milling, Ball Slot Milling, Profile Milling
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Tool Material CBN
Helix Angle 0°
Cut Rating >50HRC Steel
Machine Side Connection Type Cylindrical
Overall Len 1.9685 50.00MM
Flutes/Inserts 2
Length Of Cut 0.0433 1.10MM
Length Type Standard / With Neck
Cutter Style CBN Ball
Dimension Description 0.059 x 0.157 x 0.043 x 1.969
Neck Length 0.1772 4.50MM
Machine Side Connection Size 0.1575 4.00MM
Corner Radius 0.0295 0.75MM
Cutter Dia 0.0590 1.50MM
Inch/Metric Metric
Single/Double End Single End
Shank/Pilot Dia 0.1574 4.00MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat CBN
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
