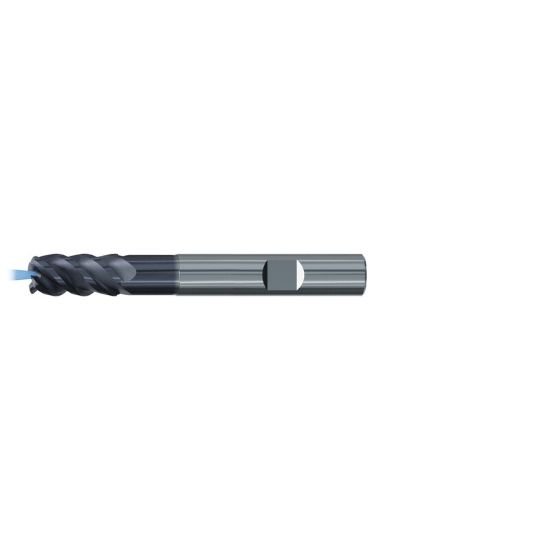

Picture of Emuge 2613AZ.012 Dia 12mm SH 0.4724 LOC 1.0236 OAL 3.6614 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0630 1.60mm Jet-Cut

Emuge 2613AZ.012 Dia 12mm SH 0.4724 LOC 1.0236 OAL 3.6614 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0630 1.60mm Jet-Cut

Part Number: EMU2613AZ.012 0.472 x 0.472 x 1.024 x 3.661
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$328.81
SKU: 1235715

Description

EMUGE Variable Helix End Mill Carbide TiAlN Corner Radius 0.0630 1.60MM 4 Flute Single End Jet-Cut
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Thru Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 3.6614 93.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 4
Tool Dia 0.4724 12.00MM
Length Of Cut 1.0236 26.00MM
Neck Length 1.5748 40.00MM
Geometry & Angles
Corner Radius 0.0630 1.60MM
Helix Angle Variable
Performance & Capacity
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
