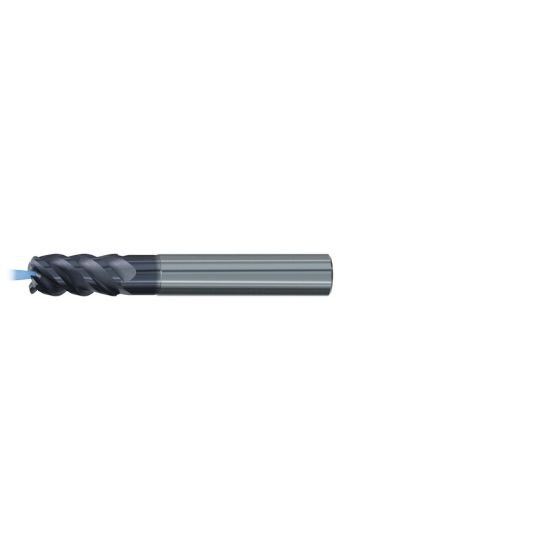

Picture of Emuge 2610AZ.105 Dia 8mm SH 0.3150 LOC 0.1969 OAL 2.2441 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0236 0.60mm Jet-Cut

Emuge 2610AZ.105 Dia 8mm SH 0.3150 LOC 0.1969 OAL 2.2441 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0236 0.60mm Jet-Cut

Part Number: EMU2610AZ.105 0.315 x 0.315 x 0.197 x 2.244
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$157.67
SKU: 1235700

Description

EMUGE High Helix End Mill Carbide TiAlN Corner Radius 0.0236 0.60MM 4 Flute Single End Jet-Cut
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Thru Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 2.2441 57.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 4
Tool Dia 0.3150 8.00MM
Length Of Cut 0.1969 5.00MM
Geometry & Angles
Corner Radius 0.0236 0.60MM
Helix Angle 50
Performance & Capacity
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
