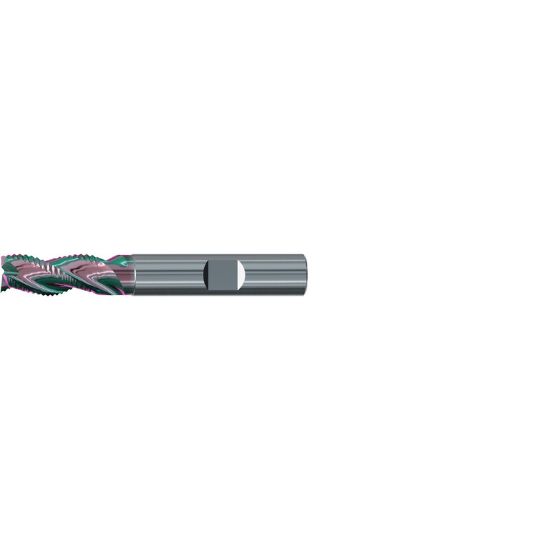

EMUGE 2549K.010 DIA 10MM SH 0.3937 LOC 0.8661 OAL 2.8346 End Mill Carbide GLT Single End Square Sharp Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2549K.010
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Coating GLT
Dimensional Specifications
Length Type Standard
Neck Length 1.1811 30.00MM
Inch/Metric Metric
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Rougher
Cutter Dia 0.3937 10.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Length Of Cut 0.8660 22.00MM
Flutes/Inserts 3
Dimension Description 0.394 x 0.394 x 0.866 x 2.835
Machine Side Connection Size 0.3937 10.00MM
Overall Len 2.8346 72.00MM
Single/Double End Single End
Helix Angle Variable
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
