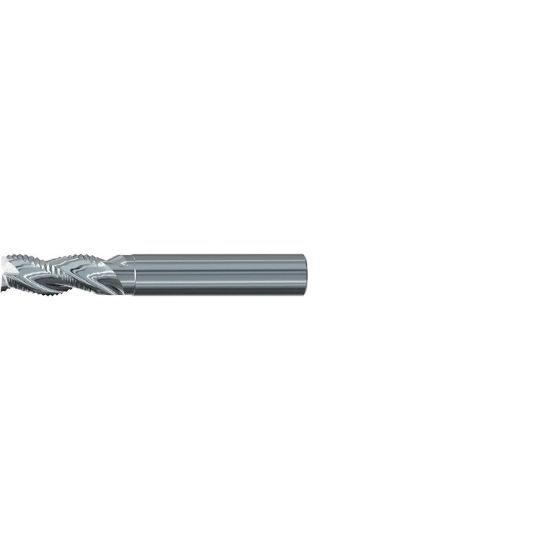

EMUGE 2548.005 DIA 5MM SH 0.2362 LOC 0.3937 OAL 2.2441 End Mill Carbide Uncoated Single End 45.0° Chamfer Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2548.005
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Face Milling, Side Milling, Slot Milling
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.197 x 0.236 x 0.394 x 2.244
Machine Side Connection Size 0.2362 6.00MM
Length Of Cut 0.3937 10.00MM
Length Type Standard
Neck Length 0.7480 19.00MM
End Of Tool Shape Corner Chamfer
Inch/Metric Metric
Single/Double End Single End
Helix Angle Variable
Flutes/Inserts 3
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutter Style Carbide Rougher
Overall Len 2.2441 57.00MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
