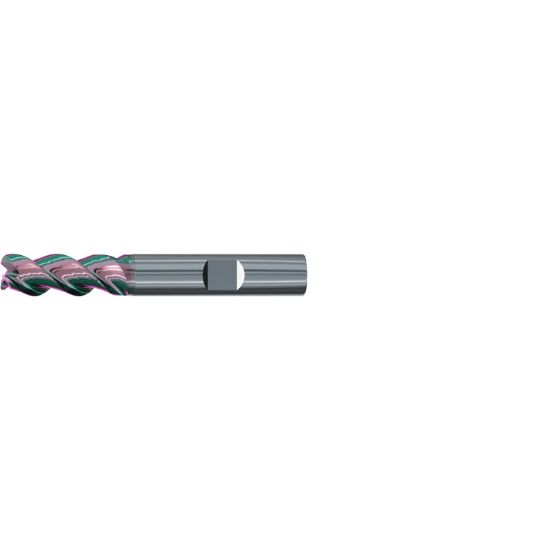

EMUGE 2547K.006005 DIA 6MM SH 0.2362 LOC 0.5118 OAL 2.2441 End Mill Standard Flute Variable Helix Carbide GLT Single End Corner Radius 0.0197 0.50MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2547K.006005
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Coating GLT
Dimensional Specifications
Corner Radius 0.0197 0.50MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Inch/Metric Metric
Single/Double End Single End
Cutter Dia 0.2362 6.00MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Length Of Cut 0.5118 13.00MM
Length Type Standard
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Dimension Description 0.236 x 0.236 x 0.512 x 2.244
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Mold Yes
Job Shop Yes
