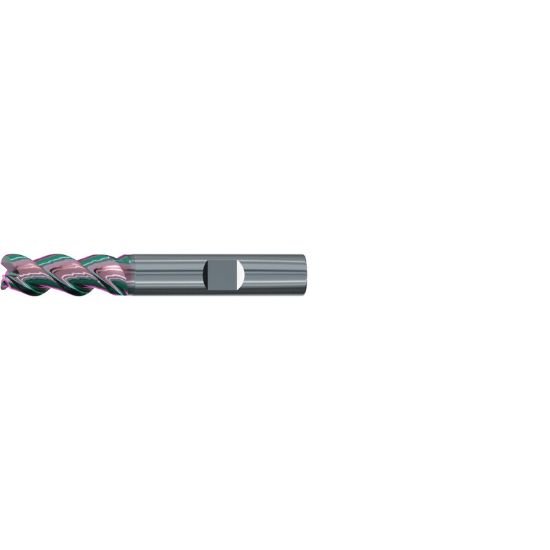

Picture of Emuge 2547K.012030 Dia 12mm SH 0.4724 LOC 1.0236 OAL3.2677 End Mill Standard Flute Variable Helix Carbide GLT Single End Corner Radius0.1181 3.00mm Alu-Cut

Emuge 2547K.012030 Dia 12mm SH 0.4724 LOC 1.0236 OAL3.2677 End Mill Standard Flute Variable Helix Carbide GLT Single End Corner Radius0.1181 3.00mm Alu-Cut

Part Number: EMU2547K.012030 0.472 x 0.472 x 1.024 x 3.268
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1234903
Vendor: Sussex Tool and Supply
$216.55

Description

EMUGE Variable Helix End Mill Carbide GLT Corner Radius 0.1181 3.00MM Standard Flute Flutes 3 Single End Alu-Cut Carbide GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.2677 83.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 3
Tool Dia 0.4724 12.00MM
Length Of Cut 1.0236 26.00MM
Geometry & Angles
Corner Radius 0.1181 3.00MM
Helix Angle Variable
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating GLT
