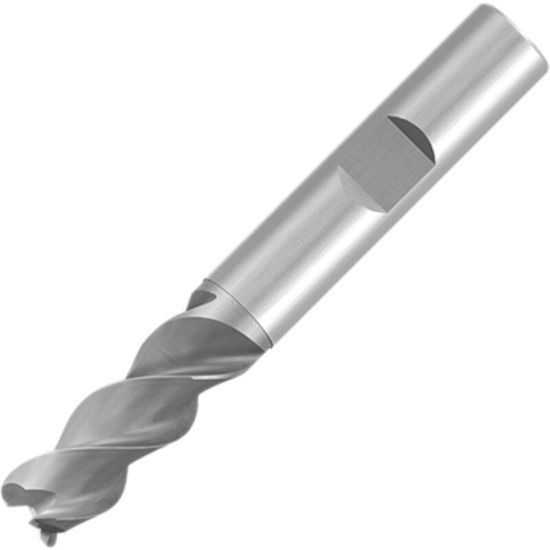

Picture of Emuge 2547.008015 Dia 8mm SH 0.3150 LOC 0.7480 OAL2.4803 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.0591 1.50mm Alu-Cut

Emuge 2547.008015 Dia 8mm SH 0.3150 LOC 0.7480 OAL2.4803 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.0591 1.50mm Alu-Cut

Part Number: EMU2547.008015 0.315 x 0.315 x 0.748 x 2.480
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1234869
Vendor: Sussex Tool and Supply
$101.23

Description

EMUGE Variable Helix End Mill Carbide Uncoated Corner Radius 0.0591 1.50MM Standard Flute Flutes 3 Single End Alu-Cut Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.4803 63.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 3
Tool Dia 0.3150 8.00MM
Length Of Cut 0.7480 19.00MM
Geometry & Angles
Corner Radius 0.0591 1.50MM
Helix Angle Variable
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
