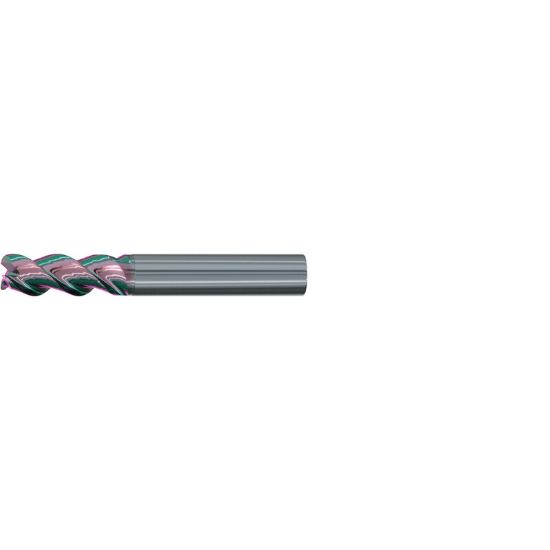

EMUGE 2546K.010010 DIA 10MM SH 0.3937 LOC 0.8661 OAL 2.8346 End Mill Standard Flute Variable Helix Carbide GLT Single End Corner Radius 0.0394 1.00MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2546K.010010
Delivery date: 3-5 days
$117.47

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Coating GLT
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size 0.3937 10.00MM
Dimension Description 0.394 x 0.394 x 0.866 x 2.835
Length Type Standard
Inch/Metric Metric
Corner Radius 0.0394 1.00MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Length Of Cut 0.8660 22.00MM
Single/Double End Single End
Overall Len 2.8346 72.00MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
