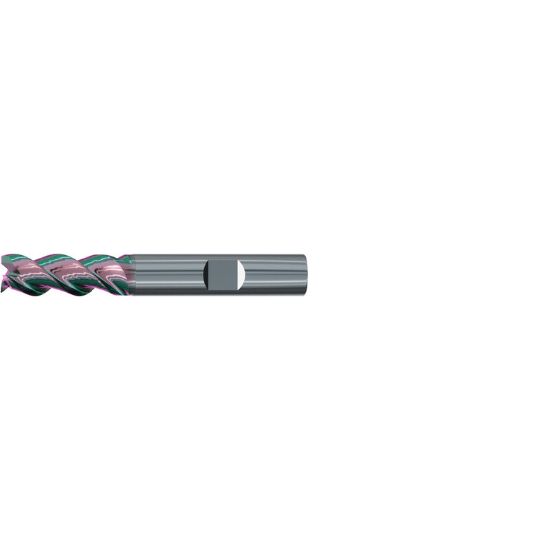

EMUGE 2545K.012 DIA 12MM SH 0.4724 LOC 3.2677 OAL 1.0236 End Mill Standard Flute Variable Helix Carbide GLT Single End 45.0° Chamfer Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2545K.012
Delivery date: 3-5 days
$152.43

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Coating GLT
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 1.0236 26.00MM
Length Of Cut 3.2677 83.00MM
Helix Angle Variable
Length Type Standard
Neck Length 1.0236 26.00MM
Single/Double End Single End
Dimension Description 0.472 x 0.472 x 3.268 x 1.024
Machine Side Connection Size 0.4724 12.00MM
End Of Tool Shape Corner Chamfer
Inch/Metric Metric
Cutter Dia 0.4724 12.00MM
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
