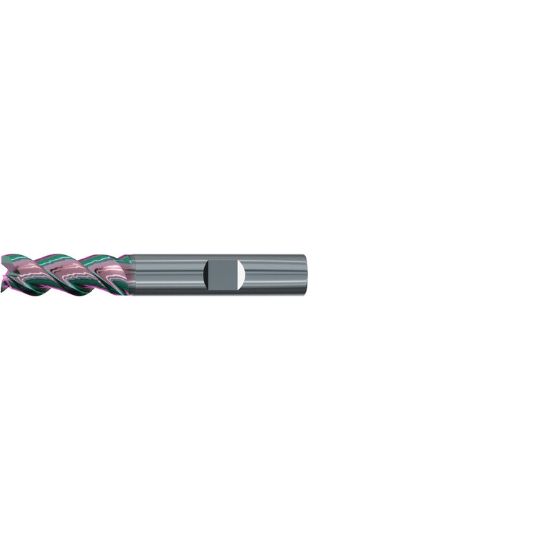

EMUGE 2545K.008 DIA 8MM SH 0.3150 LOC 2.4803 OAL 0.7480 End Mill Standard Flute Variable Helix Carbide GLT Single End 45.0° Chamfer Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2545K.008
Delivery date: 3-5 days
$85.58

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Side Milling, Slot Milling, Face Milling
Performance Rating High Performance
Coating GLT
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Length Type Standard
Dimension Description 0.315 x 0.315 x 2.480 x 0.748
Helix Angle Variable
Overall Len 0.7480 19.00MM
Flutes/Inserts 3
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.3150 8.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Length Of Cut 2.4803 63.00MM
Cutter Style Carbide Finisher
Cutter Dia 0.3150 8.00MM
Neck Length 0.7480 19.00MM
End Of Tool Shape Corner Chamfer
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
